Ag Panel
The Ag panel is a durable panel designed for use as an all-purpose roofing and siding panel.
Ag Panel - Roofing & Siding System
The Ag Panel is an all-around durable panel system designed for both metal roofing and siding, and tailored for contractors, installers, and even DIY installs.
The Ag metal panel is a popular metal roofing and siding option suitable for a variety of agricultural, commercial, and residential applications. Known for its durability and affordability, the Ag panel is a popular choice among farmers, ranchers, and homeowners alike.
The Ag Panel provides durable and dependable roofing and siding solutions for barns, homes, and retail building structures. Its robust construction withstands the rigors of agricultural or commercial environments, ensuring long-lasting performance while its design creates a visual appeal that makes it popular with residential and commercial builds.
The Ag panel serves as a practical option for residential roofing and siding projects. Its affordability and durability make it an attractive choice for homeowners seeking reliable protection and a timeless aesthetic for their properties.
Engineered for resilience, the Ag metal panel system offers exceptional durability, standing up to harsh weather conditions and environmental factors. Its sturdy design provides reliable protection against wind, rain, and snow, ensuring peace of mind for property owners.
This panel’s affordability makes it a cost-effective solution for roofing and siding needs, particularly for large-scale agricultural projects or budget-conscious homeowners. Its low initial cost combined with minimal maintenance requirements results in long-term savings over the lifespan of the structure.
Panel Features
Panel Features Include:
- 26 gauge steel (standard)
- 29 gauge steel (optional)
- 24 gauge steel (optional)
- Substrate Materials:
- Galvalume (standard)
- Galvanized (optional)
- Colors available on standard, premium and metallic.
- Rib Spacing: 9″ O.C.
- Rib Height: ¾”
Testing & Performance
Panel Certifications Include:
- UL Construction Numbers: TGKX.560.
- Uplift resistance of prepared roof-covering materials
- UL 580 Class90.
- Impact resistance of prepared roof-covering materials
- UL2218 Class 4.
- Fire tests of roof coverings
- UL 790.
- Class A, B, C. External fire exposure.
- TDI Texas Approved
Get a Quote
Panel Details

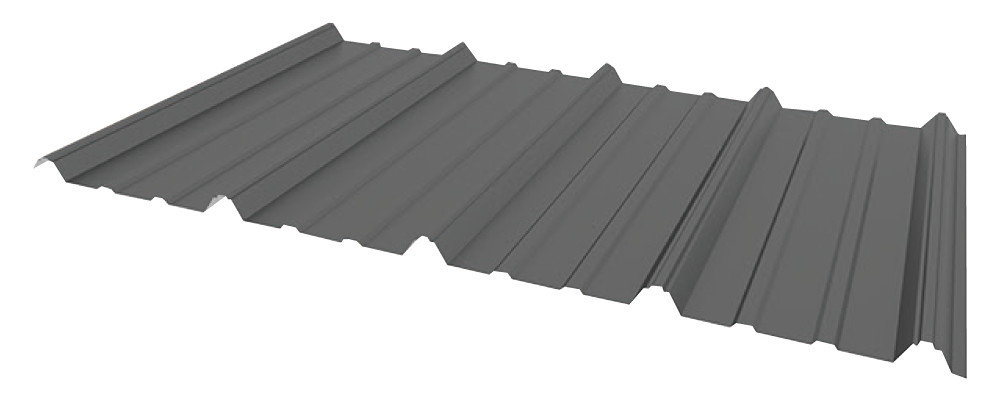

Panel Profile
Panel Enviroments
Ag Panel is suitable for use on the following environments:
- Extreme High Temperatures
- Low Temperatures (Freeze/Thaw)
- High Wind Environments
- Hail Prone Regions
- Fire Prone Regions
Building Locations
Ag Panel is suitable for use on the following building locations:
- Roofing
- Siding
- Ceiling
- Soffit
- Interiors
Finished Coverage
- Roof: 36″ Finished Coverage
- Wall: 36″ Finished Coverage
Panel Variations
- Ag Panel is not currently offered with variations differing from the original panel profile.
For custom panel designs, please contact a helpful team member
Panel Gauges
- Standard Thickness: 26 gauge steel
- Optional Thickness: 24 gauge steel*
- Optional Thickness: 29 gauge steel*
*Longer lead times may apply
Fastener Options
- Exposed, through-fastened screws
Panel Length
Ag Panel is not available for on-site roll-forming. The max panel length is determined by the length of the trailer which varies depending on state.
- Max Length, Texas: 53′ panels
Rib Height(s)
- 3/4″ Rib Height
Recommended Roof Slope
Minimum slope varies based on potential for ice & snow build up:
- No risk of ice & snow: 1:12 w/ mastic
- Potential risk of ice & snow: 2:12 w/ mastic
Paint Warranties
- PVDF – 40 year
- SMP – 40 year
- Acrylic – 40 year
- Bare Galvalume – 25 year
Panel Documentation
Trim Details
Specification Guide
Installation Guide
Looking for Additional Information?
Still have a question about this or other panels? Check out our range of articles on metal roofing, siding, coils & flats, and other industry information below.
