Weather Tightness

Quality Metals Provides Weathertightness warranties on select standing seam systems. Our carefully designed procedures and specifications ensure building owners enjoy a long-lasting, hassle-free roofing solution with complete peace of mind.

Features

  • 24 GA steel.
  • Colors available on standard, premium, and metallic.
  • Curved available.
  • On-site or factory-made.
  • Available in smooth, striated, and stiffener ribs.
  • UL Construction Number: TGKX5549.
  • Uplift resistance of prepared roof-covering materials UL 580 Class90.
  • Impact resistance of prepared roof-covering materials UL2218 Class 4.
  • Fire tests of roof coverings UL 790. Class A, B, C. External fire exposure.
  • TDI Approved.

PRODUCT SPECIFICATIONS

  • Applications: Roof and Wall
  • Coverage Width: 16”
  • Minimum Slope: ½:12
  • Panel Attachment: Standing Seam System, clip fixed and floating.
  • Gauges: 24 (standard), 22 and 26 (optional)
  • Coatings: Galvalume®, Storm Armor (Durapon 70®, Ceranamel®).
  • Substructure: Plywood or OSB to be a nominal 5/8 inch thick, Open Framing and Metal Decking.

Obtaining a QM Weathertightness Warranty Process

Submit project
plans for review.
QM prepares a take-off based on the provided plans or roof report.
Review and approve the take-off on-site, ensuring that measurements, accessories, and trims align with the actual project.
Approve the price quote to proceed.
Develop shop drawings according to project specifications.
Review and approve shop drawings to ensure accuracy.
Three roof inspections (beginning, middle, and final), addressing any necessary adjustments.

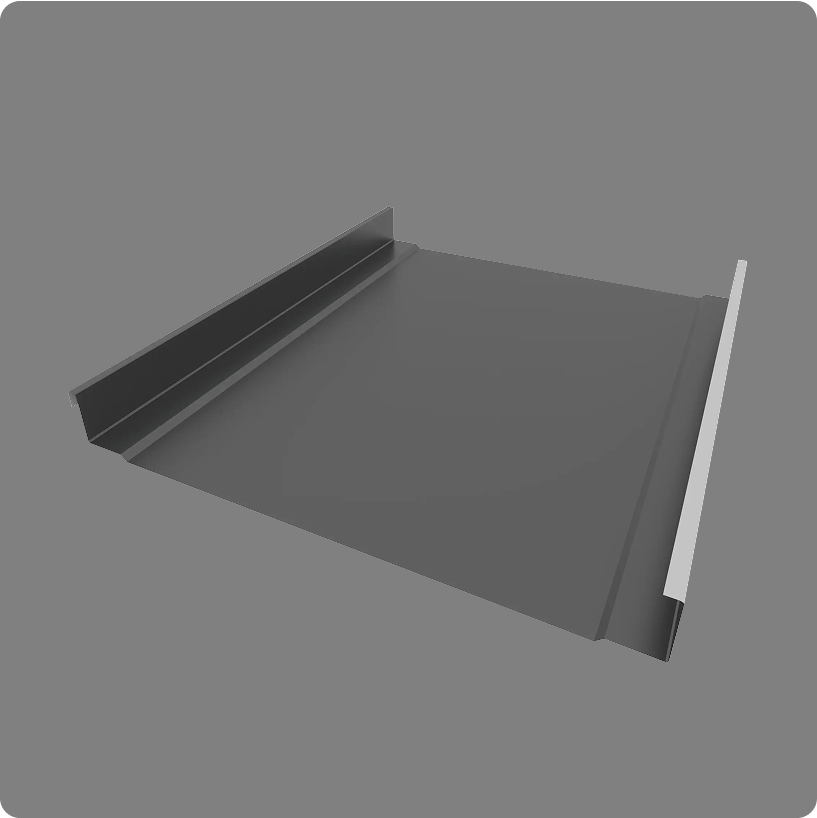

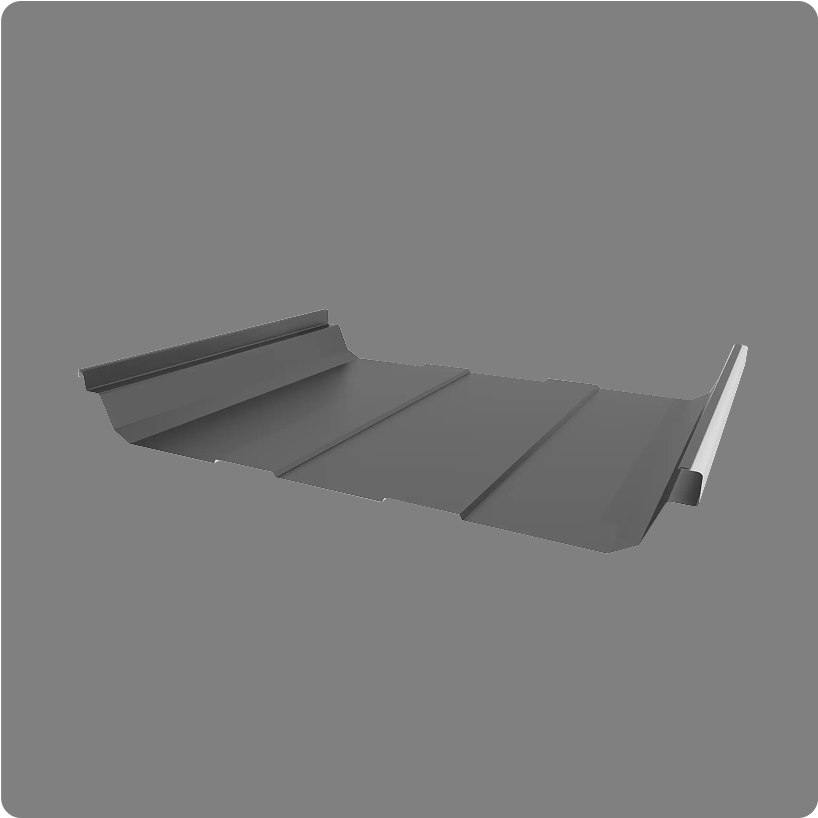

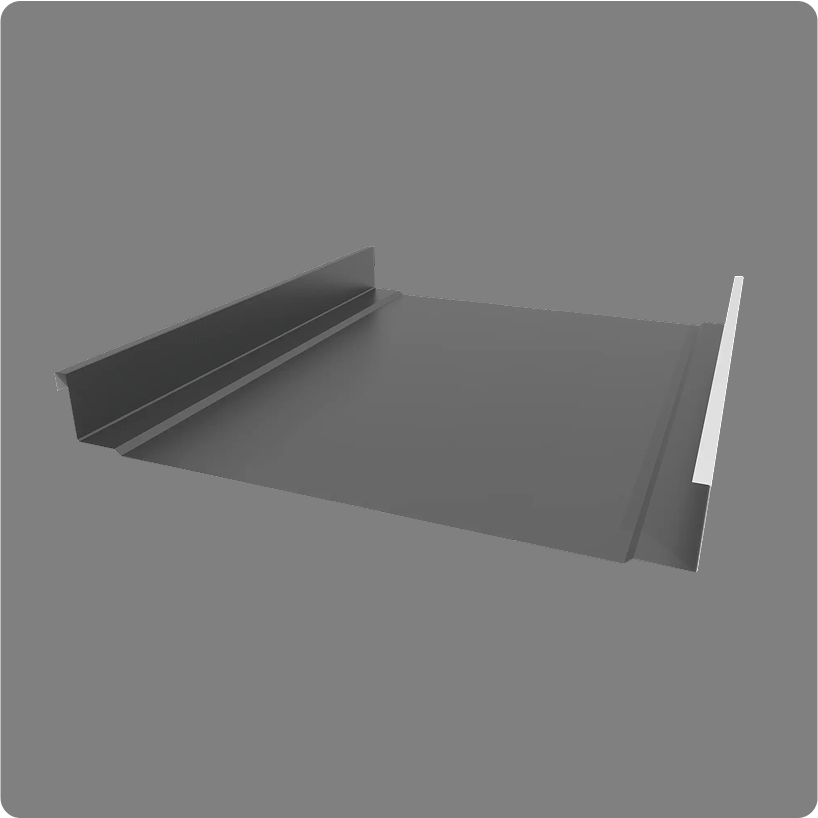

WARRANTABLE PANELS

PREREQUISITES

Professional Roof Take-Off Services

The Engineering Department at Quality Metals will deliver a detailed list of all required materials, including panel cut lists, trim sections, and accessories, ensuring a seamless and efficient installation process.

Shop Drawings & Engineering Services

Quality Metals’ Engineering Department specializes in creating precise shop drawings for each project. These drawings include detailed installation instructions, carefully tailored to the project’s specific requirements. Every screw, cut, and construction detail is meticulously considered to ensure accuracy and efficiency.

Inspection Report

Quality Metals’ Engineering Department specializes in creating precise shop drawings for each project. These drawings include detailed installation instructions, carefully tailored to the project’s specific requirements. Every screw, cut, and construction detail is meticulously considered to ensure accuracy and efficiency.

Quality Metals
WeatherTightness Warranty

Warranty Term

5 Years

10 Years

20 Years

Minimum Charge

Limited

.19 per Sq/Ft

.21 per Sq/Ft

.25 per Sq/Ft

$3,500.00

NDL

.32 per Sq/Ft

.35 per Sq/Ft

.39 per Sq/Ft

$4,100.00

The cost of shop drawings is separate and follows distinct guidelines for pricing, which are determined based on the specific requirements of the project.

The Weathertightness Warranty provided by Quality Metals is subject to the following terms and conditions:

Eligibility

The warranty is available only for select projects and is not applicable to all roofing contractors or installers. The warranty will be issued only after the project has been fully paid for, and all inspections, repairs, and corrections identified in the final inspection report have been addressed and completed.

Completion

of Work

The roofing company or installer is required to perform all necessary repairs and fixes outlined in the final inspection report to ensure that the roofing system meets the quality and performance standards expected under this warranty. All work must be completed according to the provided shop drawings and installation instructions.


Any deviations from these instructions will void the warranty, as it is crucial that the system is installed as designed.

Liability
Coverage

Upon issuance of the Weathertightness Warranty, the roofing company or installer will provide liability coverage for a period of five (5) years, ensuring that the roofing system continues to perform as expected during this period.

Inspections

A total of three inspections are required at the following stages: beginning, middle, and final.
Any additional inspections required for performance issues or concerns beyond the standard three will incur an additional charge for each inspection.

Limitations

The warranty is contingent upon proper installation, regular maintenance, and the use of approved materials. Any modifications to the roofing system or use of unauthorized materials may void the warranty.

Exclusions

This warranty does not cover damages resulting from extreme weather events, improper maintenance, or misuse of the roofing system.

Transferability

The warranty is non-transferable and applies only to the original property owner or building during the warranty period.
