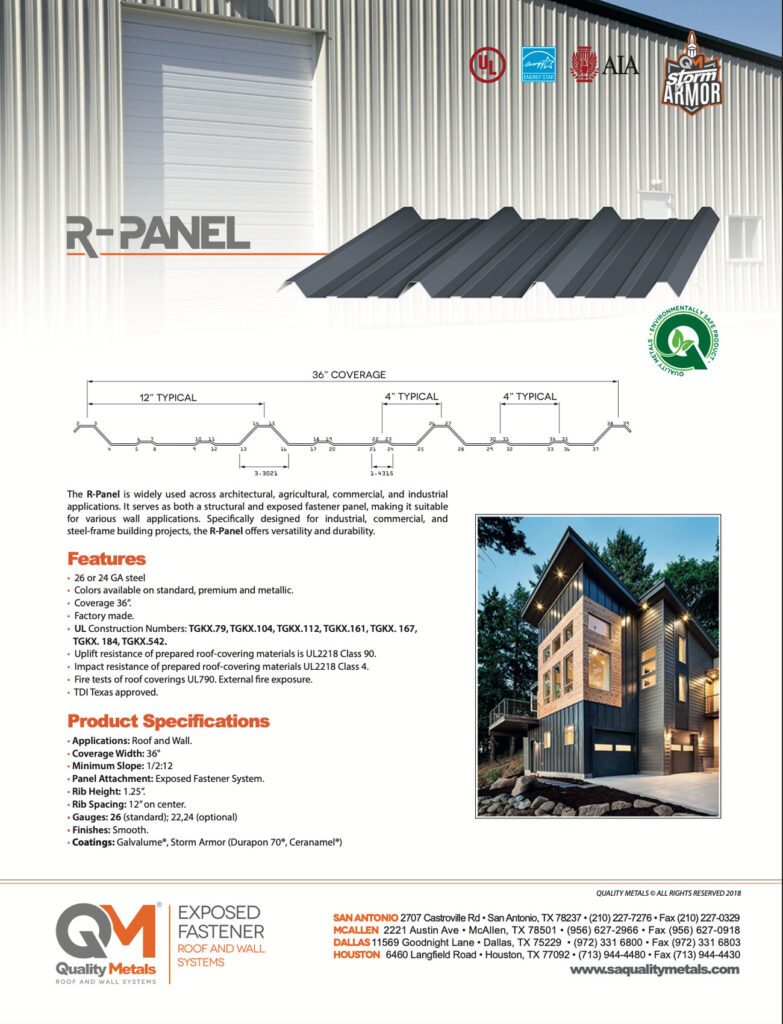

R-Panel
EXPOSED FASTENER SYSTEM

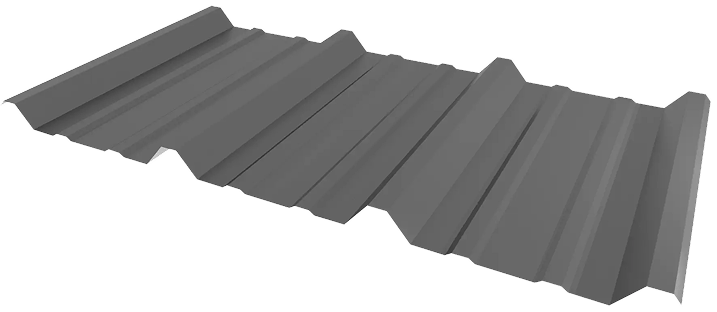

The R-Panel is commonly used for a wide variety of architectural, agricultural, commercial and industrial applications. R-Panels are structural panels with exposed fasteners used for roof and wall systems. R-Panels are designed, and effectively used for industrial, commercial, and steel-frame buildings.
Features
  • 26GA steel (standard). 29, 24GA (optional).

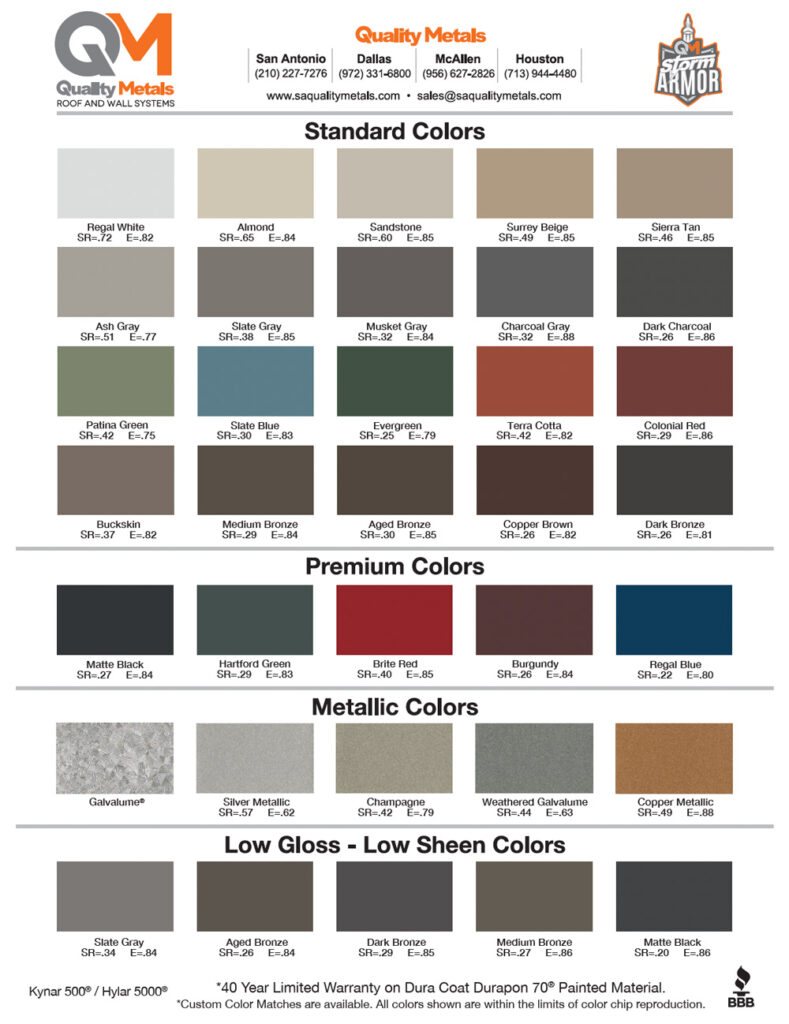

  • Colors available on standard, premium and metallic.
  • Coverage 36″.
  • Factory made.
  • Rib Height: 1.25″
  • UL Construction Number: TGKX.30, TGKX.79, TGKX.161.
  • Uplift resistance of prepared roof-covering materials UL 580 Class90.
  • Impact resistance of prepared roof-covering materials UL2218 Class 4.
  • Fire tests of roof coverings UL 790. Class A, B, C. External fire exposure.
  • TDI Texas Approved.
Product Specifications
  • Applications: Roof and Wall.
  • Coverage Widths: 36″
  • Minimum Slope: 1/2:12
  • Panel Attachment: Exposed Fasener System.
  • Minimum Slope: 1/2:12
  • Rib Height: 1.25″
  • Rib Spacing: 12″ on center.
  • Gauges: 26 GA (standard), 24 and 29 (optional).
  • Coatings: Galvalume®, Durapon 70®, Ceranamel®.
