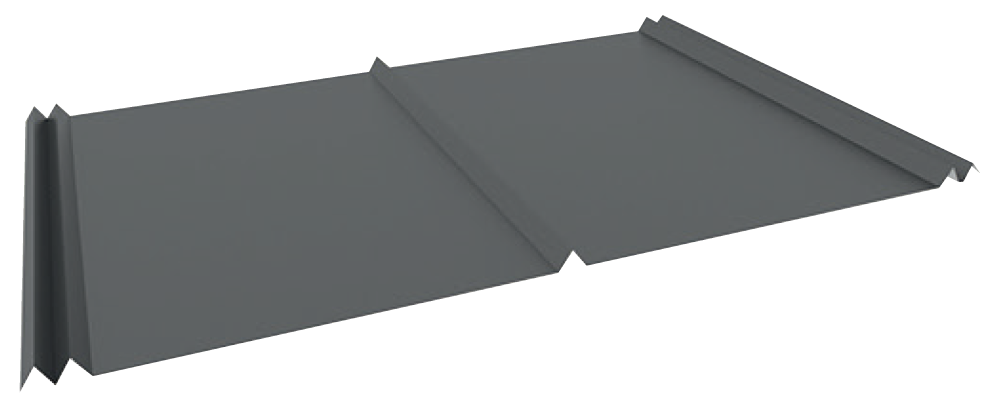

Rooted in tradition, 5V Crimp panels have long been a trusted choice for coastal and rural architecture. Their simple, timeless design and high-strength steel construction make them ideal for residential and light commercial roofing. Finished in light, reflective colors, they deliver lasting performance and maintain their classic good looks for years.

Features

29, or 26 GA steel
Colors available on standard, premium and metallic.
Coverage 24”.
Factory-made.

PRODUCT SPECIFICATIONS

Applications: Roof.
Coverage Width: 24″
Minimum Slope: 3:12
Panel Attachment: Exposed Fastener System.
Rib Height: 0.50”
Rib Spacing: 12” on center.
Gauges: 26 (standard); 29 (optional)
Finishes: Smooth.
Coatings: Storm Armor®, Galvalume®, Durapon 70®, Ceranamel®.

Product Details

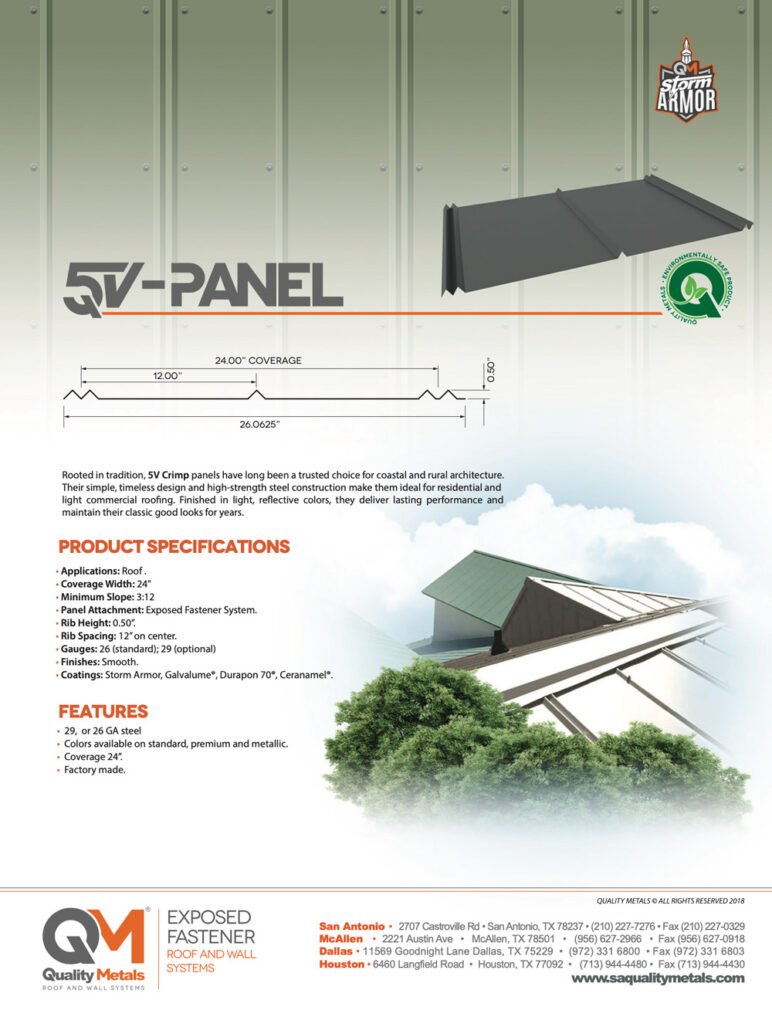

5V PANEL SPEC SHEET

PVDF COLOR CHART

• Easy Installation.
• Ideal for residential, light commercial and architectural.
• Snap together installation.
• Smooth appearance.
• Heavy resistance and durability.

STANDARD COLORS

PREMIUM COLORS

METALLIC COLORS

LOW SHEEN / LOW GLOSS

GALVALUME WARRANTY

Quality Metals warrants the use of bare zinc aluminum-coated sheet to be used for sidewall, trim, roofing, and rainware when installed in the contiguous 48 United States. This warranty provides coverage, in that the zinc-aluminum substrate will not perforate, rupture, or structurally fail during the twenty-five-year term once shipped from Quality Metals. This warranty specifically applies to AZ50 or heavier coating in accordance with ASTM A792-96 when exposed to normal atmospheric conditions

PVDFCOIL COATING LIMITED WARRANTY

We are pleased to present you with our 40-year Durapon70™ limited warranty. San Antonio Quality Metals (QM) warrants that the Durapon70™ PVDF Coil Coating System, including primer and backer, when applied over properly cleaned and chemically treated Aluminum, hot-dipped galvanized Steel, and Aluminum/zinc-coated steel in accordance with QM application and product data sheets, will not under normal atmospheric conditions, in the United States and Canada.

DURA COAT PRODUCTS INC. CERANAMEL™ XT-40S 40 YEAR LIMITED WARRANTY

Dura Coat Products, Inc. (Dura Coat) warrants that the Ceranamel™ XT-40S system, including primer and backer, when applied over prime properly cleaned and chemically treated Aluminum, Hot hot-dipped galvanized Steel (G-60 minimum), and Aluminum/zinc-coated steel in accordance with Dura Coat Products Inc. application and product data sheets, will not under normal atmospheric conditions.
