EXPOSED FASTENER SYSTEM

The AG Panel is commonly used for a wide variety of architectural, agricultural, commercial and industrial applications. AG Panels are structural panels with exposed fasteners used for roof and wall systems. AG Panels are designed, and effectively used for industrial, commercial, and steel-frame buildings.

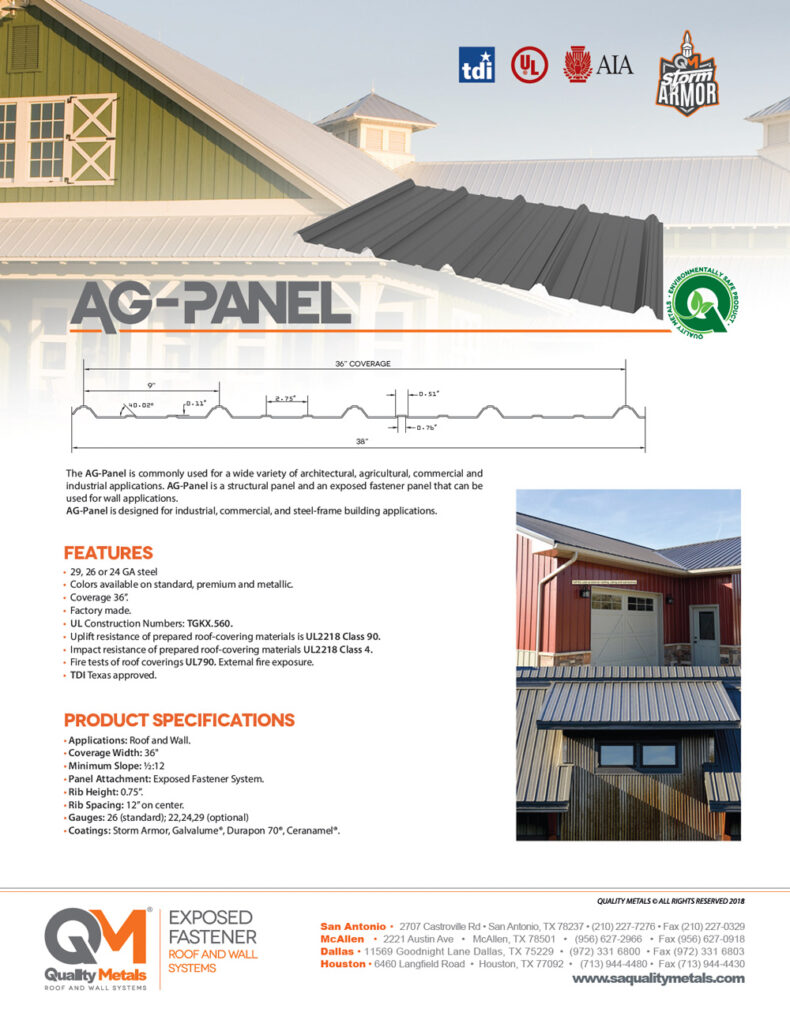

AG-Panel

Features

 26GA steel (standard). 29, 24GA (optional).

Colors available on standard, premium and metallic.

Coverage 36".

 Factory made.

Rib Height: 0.75"

• UL Construction Number: TGKX.560.

Uplift resistance of prepared roof-covering materials UL 580 Class90.

Impact resistance of prepared roof-covering materials UL2218 Class 4.

Fire tests of roof coverings UL 790. Class A, B, C. External fire exposure.

TDI Texas Approved.


Product Specifications

Applications: Roof and Wall.

Coverage Widths: 36"

Minumum Slope: 3:12

Panel Attachment: Exposed Fasener System.

Minumum Slope: 3:12

Rib Height: 0.75"

Rib Spacing: 9" on center.

Gauges: 26 GA (standard), 24 and 29 (optional).

Coatings: Galvalume®, Durapon 70®, Ceranamel®.
