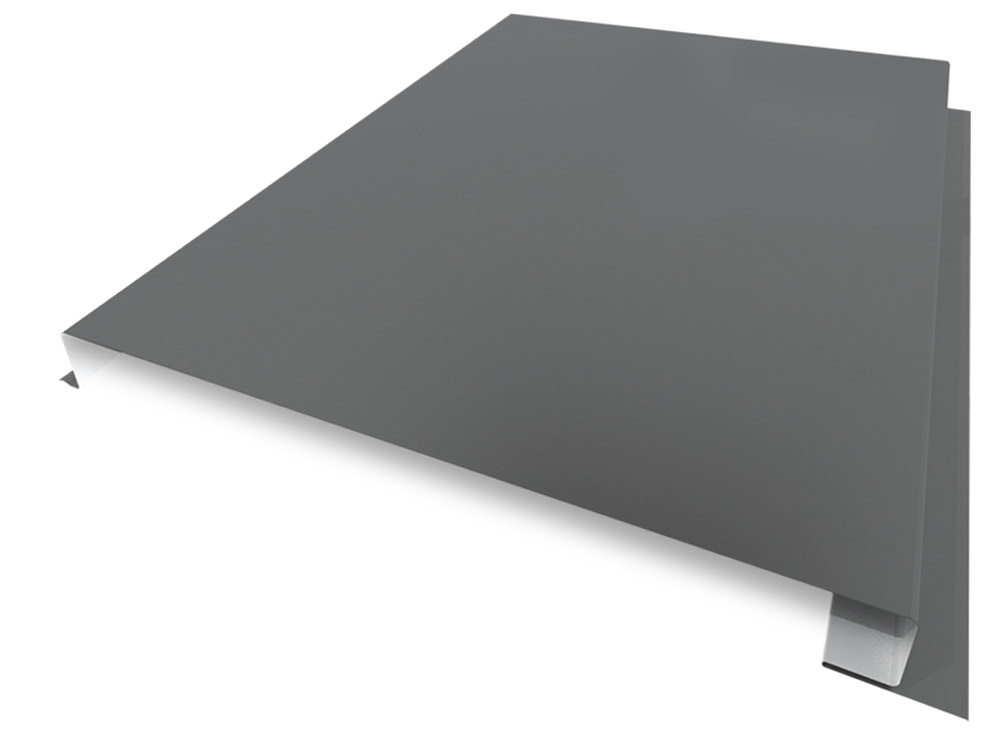

The QM Flush Panel embodies architectural precision, designed to deliver sleek aesthetics and enduring performance across a wide range of applications, including wall cladding, fascia, soffits, and accent features. Its clean, uninterrupted profile provides a seamless appearance, achieved through sharp, well-defined lines that enhance visual appeal while maintaining structural integrity. This modern design sets a new benchmark for elegance and functionality in architectural detailing.

Features

24 GA steel.
Colors available on standard, premium and metallic.
On site or factory made.
Available in smooth and stiffener ribs.
Available in vented (perforated).
Vertical or horizontal lap orientation over waterproof structural substrate.

PRODUCT SPECIFICATIONS

Applications: Roof and Wall
Coverage Widths: 12″ to 20″ MAX.
Panel Attachment: Concealed Fastening System, no clip needed.
Gauges: 24 (standard), 22 and 26 (optional)
Coatings: Galvalume®, Storm Armor (Durapon 70®, Ceranamel®).
Substructure: Plywood or OSB to be a nominal 5/8 inch thick.

Product Details

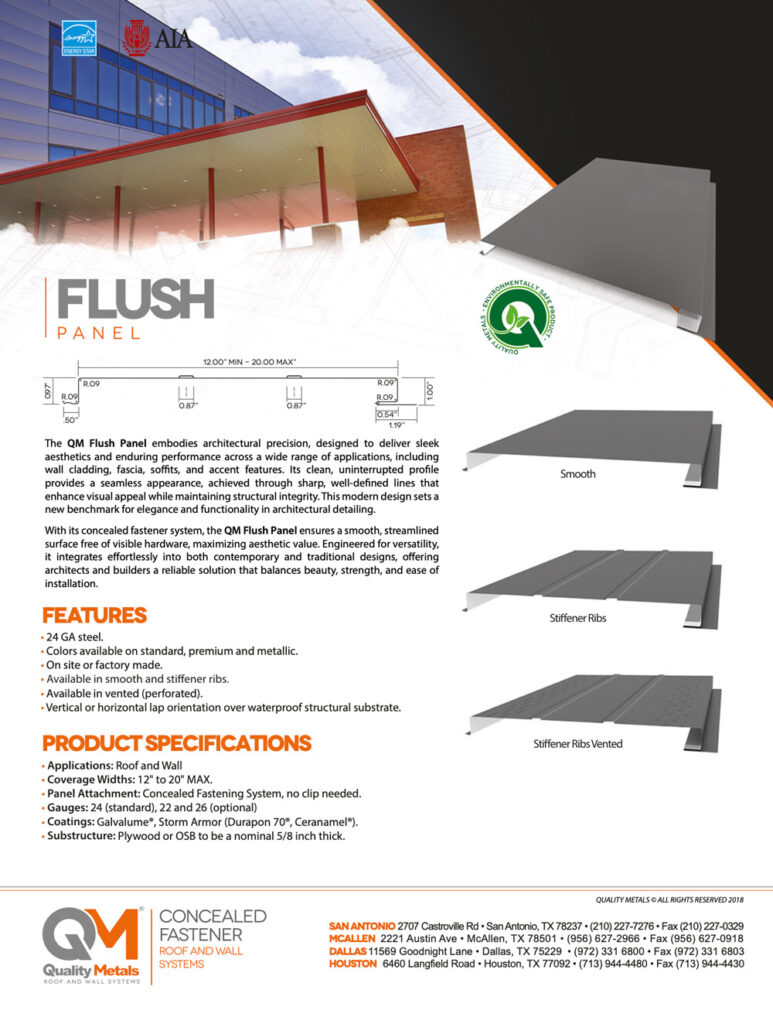

Flush Panel Spec Sheet

Panel Features Include:

24 gauge steel (standard)
22 gauge steel (optional)
26 gauge steel (optional)
Substrate Materials:
- Galvalume (standard)
- Galvanized (optional)
Colors available on standard, premium and metallic.
Panel Height: 1”

TRIM & FLASHING CATALOG

J-Channel
Joint Trim
Inside Corner
Outside Corner
Channel Cleat
Inside Corner Cleat
Corner Outside Cleat
Transition Soffit Trim
Base Flashing
Base Wall Flashing
Extended Soffit Trim
Inside Ridge Cap
Zee Soffit Flashing
Splice Soffit Flashing
Extended Base Trim
Head Flashing

CONCEALED FASTERNER

• Easy Installation.
• Ideal for residential, light commercial and architectural.
• Snap together installation.
• Smooth appearance.
• Heavy resistance and durability.

PVDF COLOR CHART

• Easy Installation.
• Ideal for residential, light commercial and architectural.
• Snap together installation.
• Smooth appearance.
• Heavy resistance and durability.

STANDARD COLORS

PREMIUM COLORS

METALLIC COLORS

LOW SHEEN / LOW GLOSS

FLUSH PANEL INSTALLATION GUIDE

This manual provides recommendations and guidelines for the installation of the Quality Metals Flush Panel system and related trim details. The information contained herein reflects the standards in effect at the time of its original publication. Quality Metals reserves the right to update or modify specifications and designs without notice, in order to meet evolving code requirements. For the most current information, please visit our website or contact us directly.

GALVALUME WARRANTY

Quality Metals warrants the use of bare zinc aluminum-coated sheet to be used for sidewall, trim, roofing, and rainware when installed in the contiguous 48 United States. This warranty provides coverage, in that the zinc-aluminum substrate will not perforate, rupture, or structurally fail during the twenty-five-year term once shipped from Quality Metals. This warranty specifically applies to AZ50 or heavier coating in accordance with ASTM A792-96 when exposed to normal atmospheric conditions

PVDFCOIL COATING LIMITED WARRANTY

We are pleased to present you with our 40-year Durapon70™ limited warranty. San Antonio Quality Metals (QM) warrants that the Durapon70™ PVDF Coil Coating System, including primer and backer, when applied over properly cleaned and chemically treated Aluminum, hot-dipped galvanized Steel, and Aluminum/zinc-coated steel in accordance with QM application and product data sheets, will not under normal atmospheric conditions, in the United States and Canada.

DURA COAT PRODUCTS INC. CERANAMEL™ XT-40S 40 YEAR LIMITED WARRANTY

Dura Coat Products, Inc. (Dura Coat) warrants that the Ceranamel™ XT-40S system, including primer and backer, when applied over prime properly cleaned and chemically treated Aluminum, Hot hot-dipped galvanized Steel (G-60 minimum), and Aluminum/zinc-coated steel in accordance with Dura Coat Products Inc. application and product data sheets, will not under normal atmospheric conditions.
