The R-Panel is widely used across architectural, agricultural, commercial, and industrial applications. It serves as both a structural and exposed fastener panel, making it suitable for various wall applications. Specifically designed for industrial, commercial, and steel-frame building projects, the R-Panel offers versatility and durability.

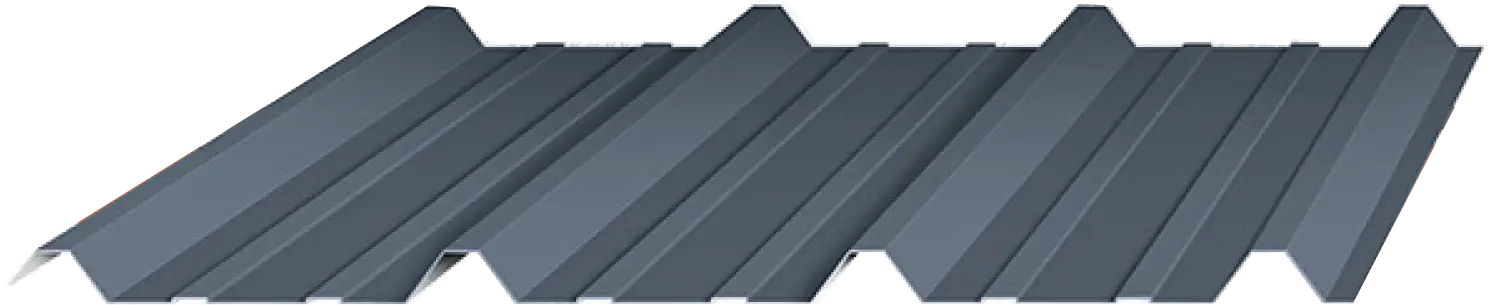

R-PANEL by Quality Metals

Features

26 or 24 GA steel
Colors available on standard, premium and metallic
Coverage 36”
Factory made
UL Construction Numbers: TGKX.79, TGKX.104, TGKX.112, TGKX.161, TGKX.167, TGKX.184, TGKX.542
Uplift resistance of prepared roof-covering materials is UL2218 Class 90
Impact resistance of prepared roof-covering materials UL2218 Class 4
Fire tests of roof coverings UL790. External fire exposure
TDI Texas approved

PRODUCT SPECIFICATIONS

Applications: Roof and Wall
Coverage Width: 36″
Minimum Slope: 1/2:12
Panel Attachment: Exposed Fastener System
Rib Height: 1.25”
Rib Spacing: 12” on center
Gauges: 26 (standard); 22, 24 (optional)
Finishes: Smooth
Coatings: Galvalume®, Storm Armor (Durapon 70®, Ceranamel®)

Product Details

R-PANEL SPEC SHEET

Panel Certifications Include:

UL Construction Number: TGKX.30, TGKX.79, TGKX.161.
Uplift resistance of prepared roof-covering materials
- UL 580 Class90.
Impact resistance of prepared roof-covering materials
- UL2218 Class 4.
Fire tests of roof coverings
- UL 790.
- Class A, B, C. External fire exposure.

SMP COLOR CHART

SMP (Silicone-Modified Polyester) Painted Metal: The technical advantages — our SMP painted metal is engineered to deliver performance and protection that meet the most rigorous industry standards. It offers a comprehensive solution for a wide range of architectural and industrial applications, combining aesthetic appeal with robust technical attributes.

SMP coatings excel in weather resistance. They maintain color vibrancy and gloss over extended exposure to sunlight and adverse weather conditions.

SMP-coated metal provides a protective barrier against corrosion, ensuring structural integrity over time.

STANDARD COLORS

premium colors

METALLIC COLORS

low gloss – low sheen colors

R-PANEL SKYLIGHT FIBERGLASS

Designed for durability, light transmission, and structural compatibility, our R and PBR Panel, Skylight Fiberglass panels are the ideal daylighting solution for metal buildings. Manufactured with high-quality fiberglass-reinforced plastic (FRP), these panels are engineered to match standard R-panel profiles and provide excellent performance in both roof and wall applications.

R-PANEL INSTALLATION GUIDE

R/PBR panels are structural in nature and can be installed either on solid substrate or open framing. This panel can be installed vertically or horizontally with exposed fasteners.

GALVALUME WARRANTY

Quality Metals warrants the use of bare zinc aluminum-coated sheet to be used for sidewall, trim, roofing, and rainware when installed in the contiguous 48 United States. This warranty provides coverage, in that the zinc-aluminum substrate will not perforate, rupture, or structurally fail during the twenty-five-year term once shipped from Quality Metals. This warranty specifically applies to AZ50 or heavier coating in accordance with ASTM A792-96 when exposed to normal atmospheric conditions

PVDF POLYVINYLIDENE FLUORIDE WARRANTY

We are pleased to present you with our 40-year Durapon70™ limited warranty. San Antonio Quality Metals (QM) warrants that the Durapon70™ PVDF Coil Coating System, including primer and backer, when applied over properly cleaned and chemically treated Aluminum, hot-dipped galvanized Steel, and Aluminum/zinc-coated steel in accordance with QM application and product data sheets, will not under normal atmospheric conditions, in the United States and Canada.

SMP SILICONE-MODIFIED POLYESTER WARRANTY

Dura Coat Products, Inc. (Dura Coat) warrants that the Ceranamel™ XT-40S system, including primer and backer, when applied over prime properly cleaned and chemically treated Aluminum, Hot hot-dipped galvanized Steel (G-60 minimum), and Aluminum/zinc-coated steel in accordance with Dura Coat Products Inc. application and product data sheets, will not under normal atmospheric conditions.
