NS-150 (New) - Metal Roofing, Siding, Coils & Trim by Quality Metals

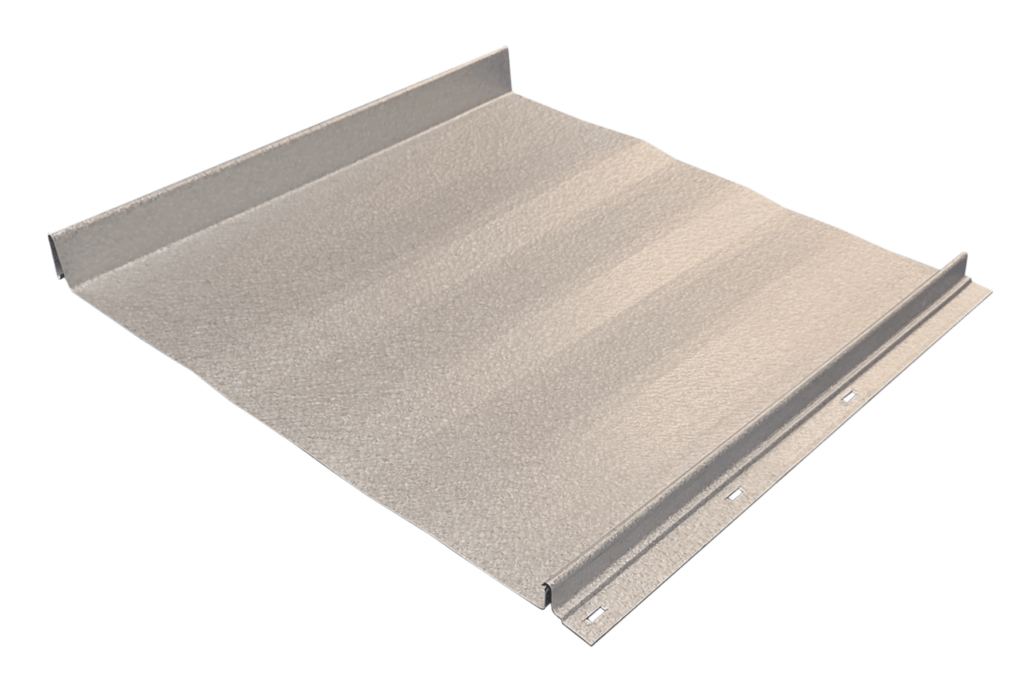

The NS-150 Nail Strip Panel offers a clean, architectural look with reliable structural performance. Designed as a low-profile, clip-less system, it allows for quick and efficient installation without the need for additional fastening components.
The NS-150 is ideal for residential and light commercial projects, especially where a sleek finish and straightforward installation are key.

Features

24 GA steel.
Colors available in standard, premium, and metallic finishes.
Manufactured on-site or at the factory.
Available in smooth and striated finishes.

PRODUCT SPECIFICATIONS

Applications: Roof and Wall
Coverage Width: 16″
Minimum Slope: 3:12
Panel Attachment: Concealed fastening system — no clips required
Gauges: 24 (standard), 22 and 26 (optional)
Coatings: Galvalume®, Storm Armor (DuraPon 70®, Ceranamel®)
Substructure: Plywood or OSB, nominal 5/8″ thick

Product Details

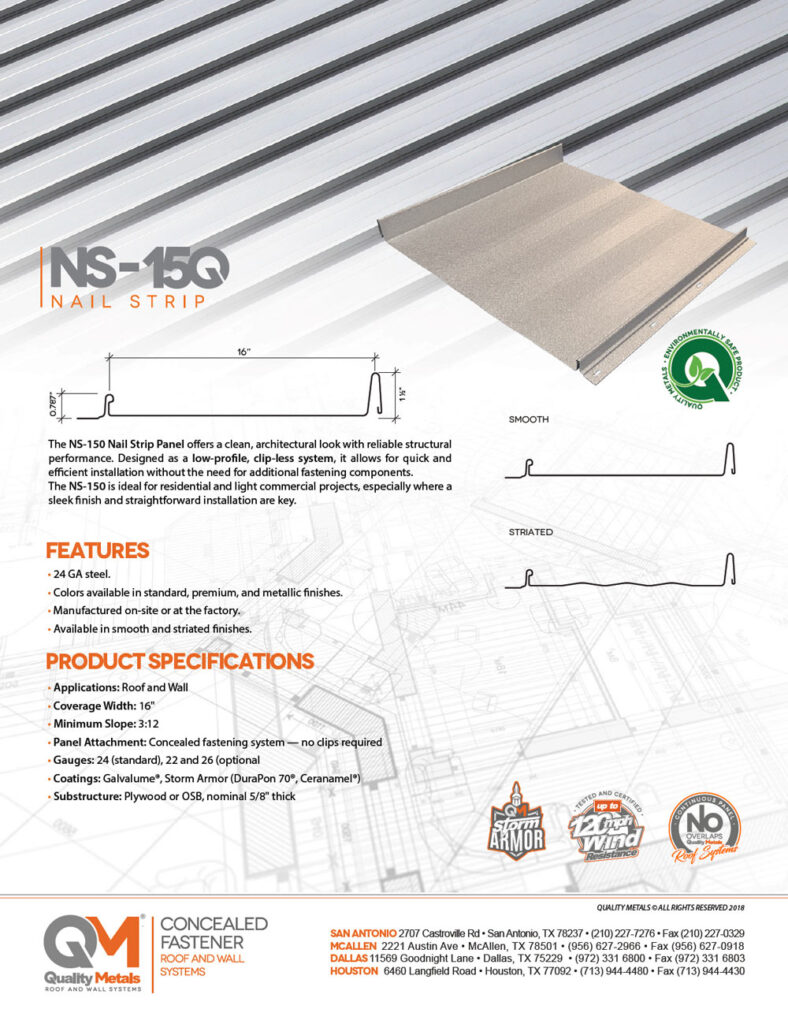

NS-150 Spec Sheet

Panel Certifications Include:

UL Construction Number: TGKX529
Uplift resistance of prepared roof-covering materials
- UL 580 Class90.
Impact resistance of prepared roof-covering materials
- UL2218 Class 4.
Fire tests of roof coverings
- UL 790.
- Class A, B, C. External fire exposure.

CONCEALED FASTERNER

• Easy Installation.
• Ideal for residential, light commercial and architectural.
• Snap together installation.
• Smooth appearance.
• Heavy resistance and durability.

PVDF COLOR CHART

• Easy Installation.
• Ideal for residential, light commercial and architectural.
• Snap together installation.
• Smooth appearance.
• Heavy resistance and durability.

STANDARD COLORS

PREMIUM COLORS

METALLIC COLORS

LOW SHEEN / LOW GLOSS

GALVALUME WARRANTY

Quality Metals warrants the use of bare zinc aluminum-coated sheet to be used for sidewall, trim, roofing, and rainware when installed in the contiguous 48 United States. This warranty provides coverage, in that the zinc-aluminum substrate will not perforate, rupture, or structurally fail during the twenty-five-year term once shipped from Quality Metals. This warranty specifically applies to AZ50 or heavier coating in accordance with ASTM A792-96 when exposed to normal atmospheric conditions

PVDFCOIL COATING LIMITED WARRANTY

We are pleased to present you with our 40-year Durapon70™ limited warranty. San Antonio Quality Metals (QM) warrants that the Durapon70™ PVDF Coil Coating System, including primer and backer, when applied over properly cleaned and chemically treated Aluminum, hot-dipped galvanized Steel, and Aluminum/zinc-coated steel in accordance with QM application and product data sheets, will not under normal atmospheric conditions, in the United States and Canada.

DURA COAT PRODUCTS INC. CERANAMEL™ XT-40S 40 YEAR LIMITED WARRANTY

Dura Coat Products, Inc. (Dura Coat) warrants that the Ceranamel™ XT-40S system, including primer and backer, when applied over prime properly cleaned and chemically treated Aluminum, Hot hot-dipped galvanized Steel (G-60 minimum), and Aluminum/zinc-coated steel in accordance with Dura Coat Products Inc. application and product data sheets, will not under normal atmospheric conditions.
