EXPOSED FASTENER SYSTEM
U-Panel
EXPOSED FASTENER SYSTEM
The U-Panel is commonly used for a wide variety of architectural, agricultural, commercial and industrial applications. U-Panel is a structural panel with exposed fasteners used for roof and wall systems. U-Panel Panel is designed, and effectively used for industrial, commercial, and steel-frame buildings.
Features
  • 26GA steel (standard). 29, 24GA (optional).

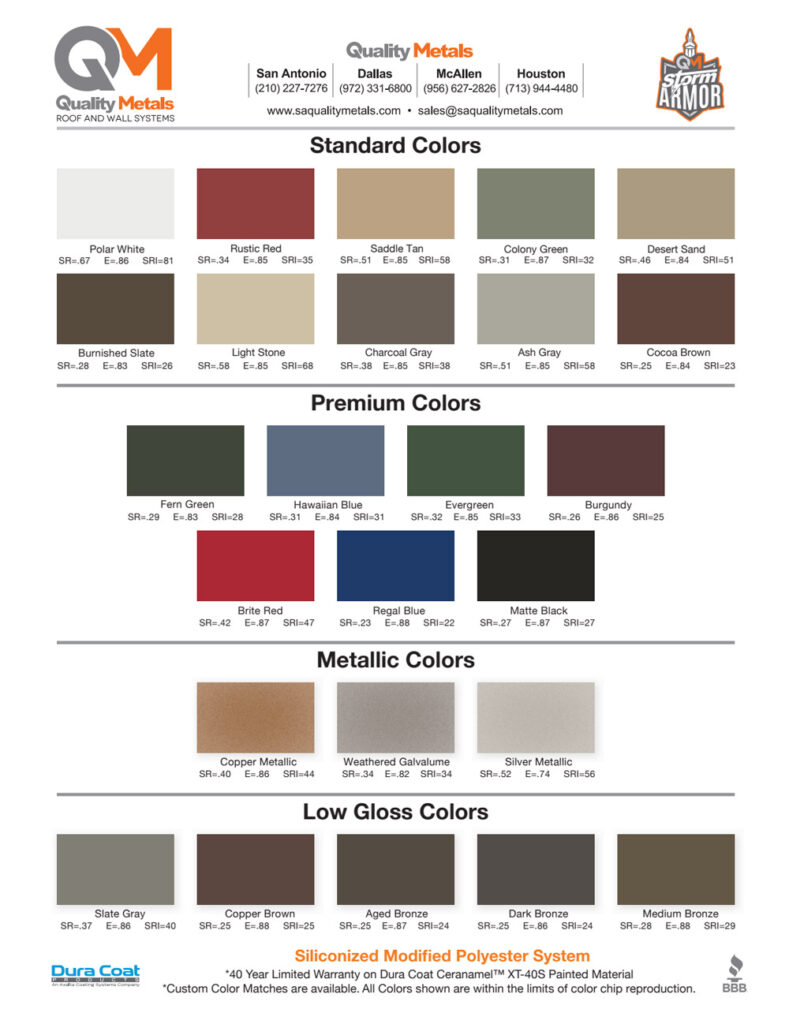

  • Colors available on standard, premium and metallic.
  • Coverage 32” wall, 29.33 roof.
  • Rib Spacing: 6″ O.C.
  • Rib Height: ¾”
  • UL Construction Number: TGKX.12, TGKX.39.
  • Uplift resistance of prepared roof-covering materials UL 580 Class90.
  • Impact resistance of prepared roof-covering materials UL2218 Class 4.
  • Fire tests of roof coverings UL 790. Class A, B, C. External fire exposure.
  • TDI Texas Approved.
Product Specifications
  • Applications: Roof and Wall.
  • Coverage Widths: 32” wall, 29.33 roof
  • Minumum Slope: 1:12
  • Gauges: 26 GA (standard), 24 and 29 (optional)
  • Coatings: Galvalume®, Durapon 70®, Ceranamel®.
