ML-100 (New) - Metal Roofing, Siding, Coils & Trim by Quality Metals

The Mechanical Lock features a structural performance and architectural aesthetic in ML-100 (1” High). The ML-100 can be manufactured on job sites for various substrates. Concealed fasteners with a fixed floating clip system reduce the effect of thermal stresses on the ML-100 panel system, helping to maintain a unique, smooth, uniform appearance despite fluctuations in temperature.

Features

24 GA steel.
Colors available on standard, premium and metallic.
Curved available.
On-site or factory-made.
Available in smooth, striated and stiffener ribs.
UL Construction Number: TGKX575, TGKX602.
Uplifted resistance of prepared roof-covering materials UL 580 Class90.
Impact resistance of prepared roof-covering materials UL2218 Class 4.
Fire tests of roof coverings UL 790. Class A, B, C. External fire exposure.
TDI approved.

PRODUCT SPECIFICATIONS

Applications: Roof and Wall
Coverage Widths: 21” Max.
Minimum Slope: ½:12
Panel Attachment: Standing Seam System, clip fixed.
Gauges: 24 (standard), 22 and 26 (optional)

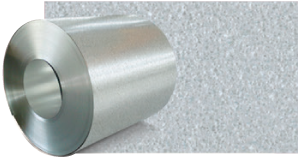

Coatings: Galvalume®, Storm Armor (Durapon 70®, Ceranamel®).
Substructured: Plywood or OSB to be a nominal 5/8 inch thick.

Product Details

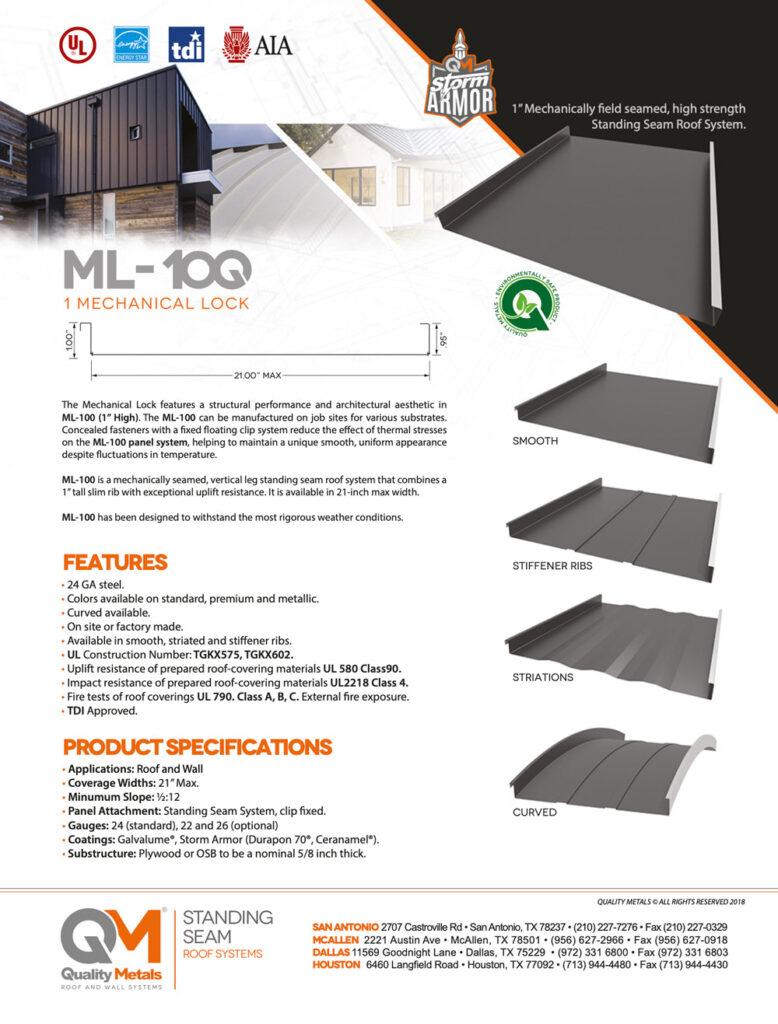

ML-100 Spec Sheet

Panel Certifications Include:

UL Construction Number: TGKX90, TGKX180, TGKX180, TGKX238, TGKX238A, TGKX238B,TGKX298, TGKX437 TGKX449, TGKX451, TGKX452, TGKX482, TGKX487, TGKX633 and TGKX639.
Uplift resistance of prepared roof-covering materials
- UL 580 Class90.
Impact resistance of prepared roof-covering materials
- UL2218 Class 4.
Fire tests of roof coverings
- UL 790.
- Class A, B, C. External fire exposure.

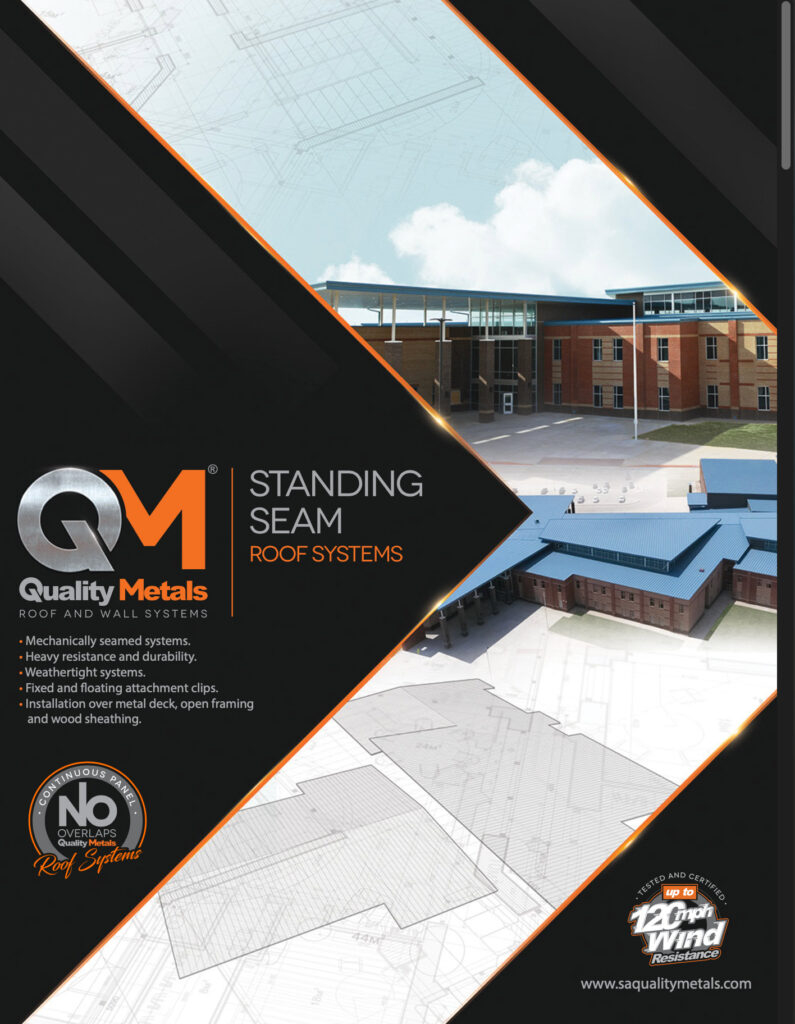

STANDING SEAM ROOF SYSTEMS BROCHURE

Mechanically seamed systems.
Heavy resistance and durability.
Weathertight systems.
Fixed and floating attachment clips.
Installation over metal deck, open framing and wood sheathing.

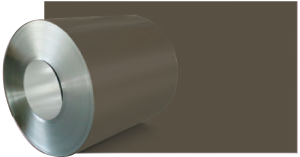

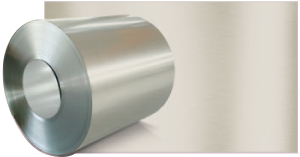

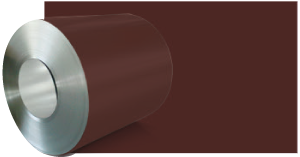

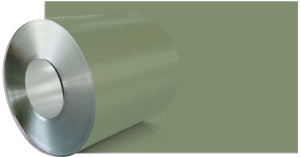

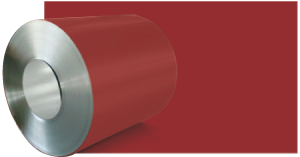

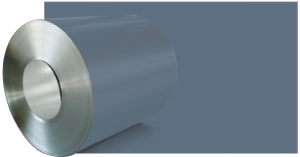

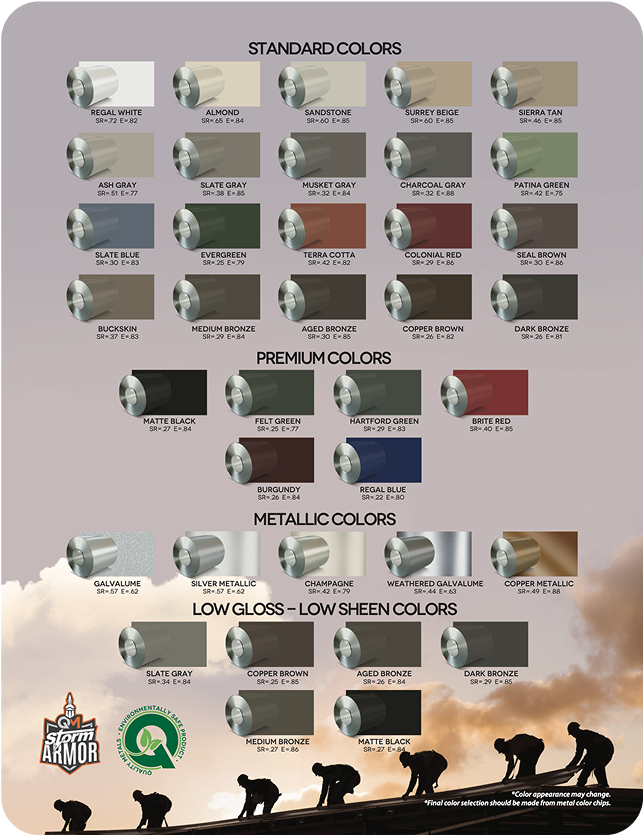

PVDF COLOR CHART

• Easy Installation.
• Ideal for residential, light commercial and architectural.
• Snap together installation.
• Smooth appearance.
• Heavy resistance and durability.

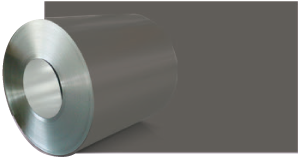

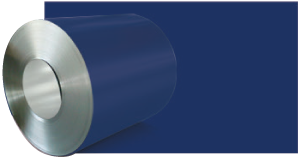

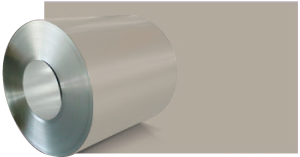

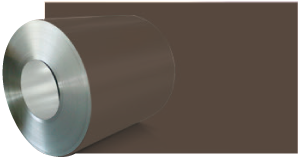

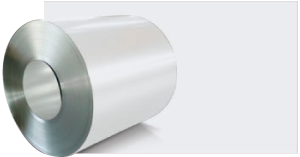

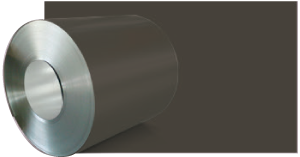

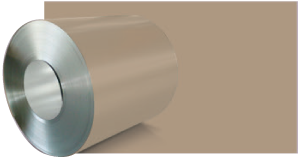

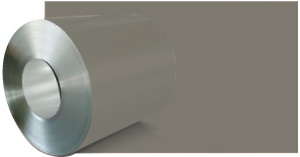

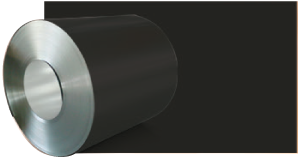

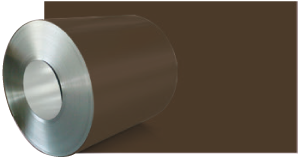

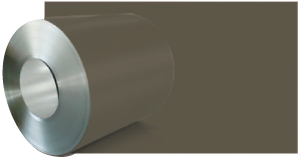

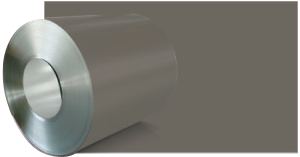

STANDARD COLORS

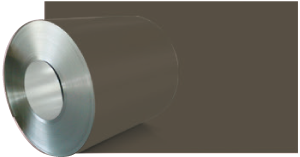

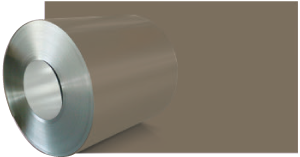

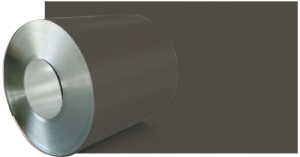

PREMIUM COLORS

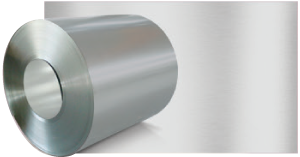

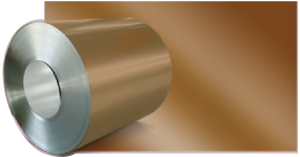

METALLIC COLORS

LOW SHEEN / LOW GLOSS

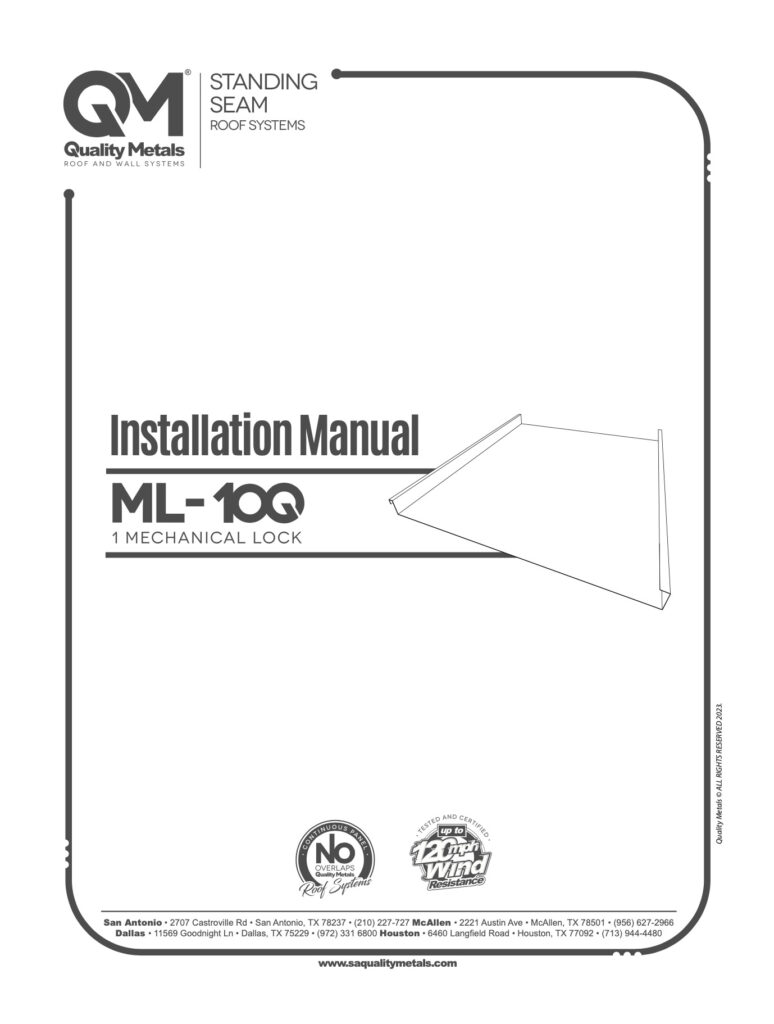

ML-100 INSTALLATION GUIDE

This manual contains suggestions and guidelines on how to install the subject Quality Metals ML-100 panel and trim details. The contents of this manual include the guidelines that were in effect at the time this publication was originally printed. In an effort to keep pace with the ever-changing code environment, Quality Metals retains the right to change specifications and/or designs at any time without incurring any obligations. To ensure you have the latest information available, please inquire or visit our website. Application and design details are for illustrative purposes only and may not be appropriate for all environmental conditions and/or building designs. Projects should be engineered and installed to conform to applicable building codes, regulations, and accepted industry practices.

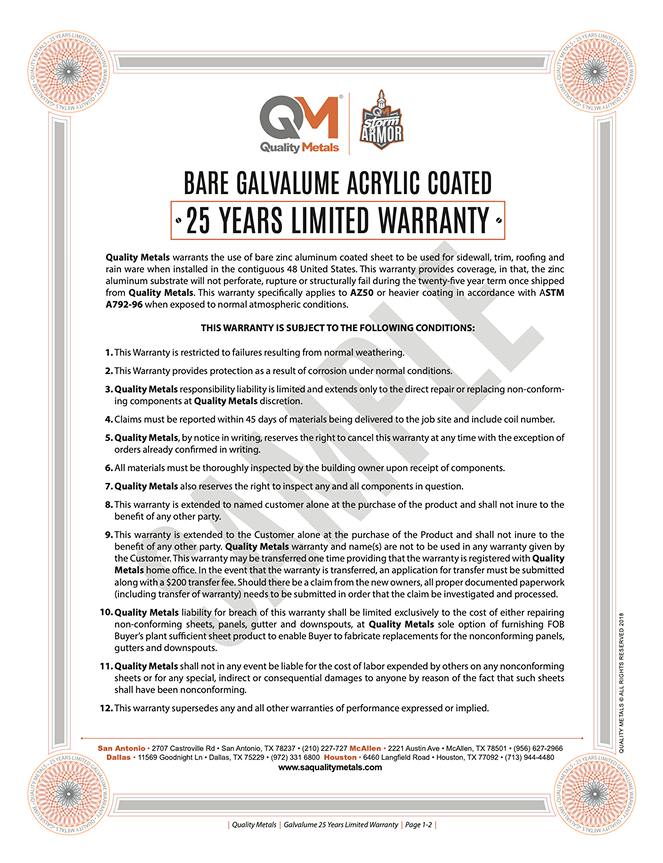

GALVALUME WARRANTY

Quality Metals warrants the use of bare zinc aluminum-coated sheet to be used for sidewall, trim, roofing, and rainware when installed in the contiguous 48 United States. This warranty provides coverage, in that the zinc-aluminum substrate will not perforate, rupture, or structurally fail during the twenty-five-year term once shipped from Quality Metals. This warranty specifically applies to AZ50 or heavier coating in accordance with ASTM A792-96 when exposed to normal atmospheric conditions

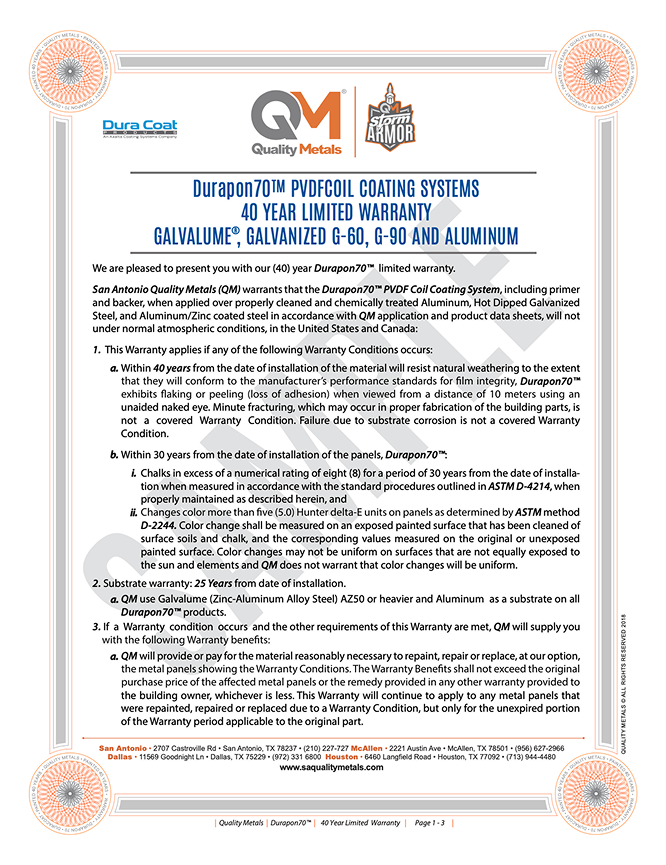

PVDFCOIL COATING LIMITED WARRANTY

We are pleased to present you with our 40-year Durapon70™ limited warranty. San Antonio Quality Metals (QM) warrants that the Durapon70™ PVDF Coil Coating System, including primer and backer, when applied over properly cleaned and chemically treated Aluminum, hot-dipped galvanized Steel, and Aluminum/zinc-coated steel in accordance with QM application and product data sheets, will not under normal atmospheric conditions, in the United States and Canada.

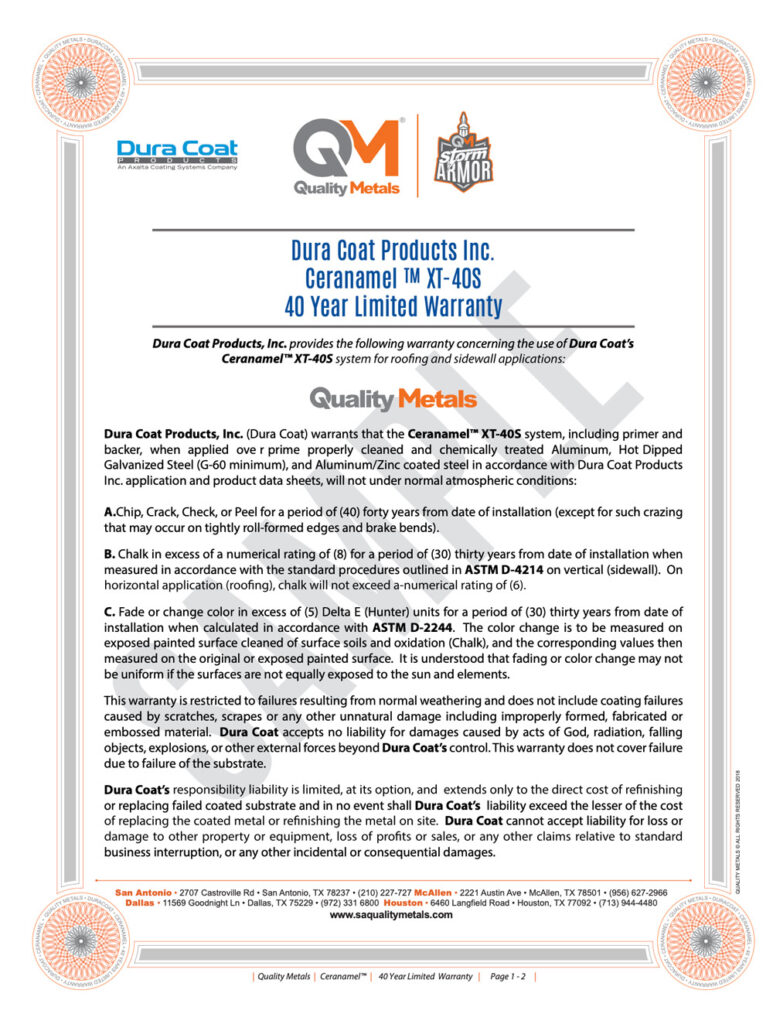

DURA COAT PRODUCTS INC. CERANAMEL™ XT-40S 40 YEAR LIMITED WARRANTY

Dura Coat Products, Inc. (Dura Coat) warrants that the Ceranamel™ XT-40S system, including primer and backer, when applied over prime properly cleaned and chemically treated Aluminum, Hot hot-dipped galvanized Steel (G-60 minimum), and Aluminum/zinc-coated steel in accordance with Dura Coat Products Inc. application and product data sheets, will not under normal atmospheric conditions.

Start with Confidence

Ready to experience the Quality Metals difference? Get in touch today for a quote, consultation, or custom order.

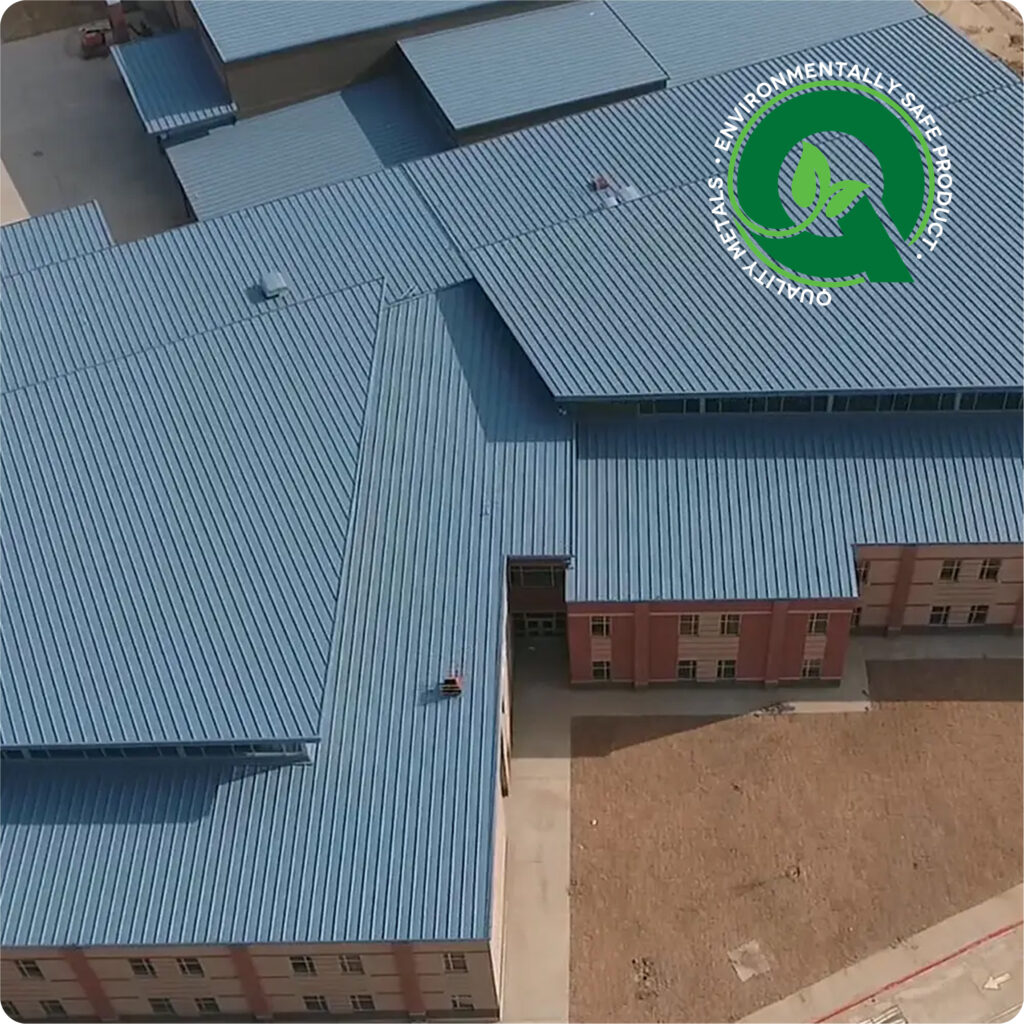

Product Showcase
